The pictures we trained on

In short

We trained on 123 photos. Only 46 are ours — taken in the sports hall. The other 77 we downloaded, and that is the reason our pad looks the way it does.

The photos arrived badly sorted, in a way that let the model cheat. We re-sorted them.

A further 76 pictures containing no pad at all were added. This proved to be the single most effective change made to the training data.

Where the pictures came from

Two places.

77 photos we downloaded. There is a free collection on the internet, cgomolak/landing-pad-zvclx, of a landing pad already marked up by somebody else. It shows a dark foam mat with red tape around the edge and red tape across the diagonals — 38 pictures of it floating on a black background, and 39 close-ups on an office carpet.

46 photos we took ourselves, of our own pad lying on the sports hall floor.

Where the photos come from	How many	What they show
Downloaded	38	the pad on a black background, cut out of any room
Downloaded	39	the pad on an office carpet, close up
Ours	46	the pad on the sports hall floor

So 63 % of the pictures are not ours, and they show places the drone has never been.

Why we took the hall photos

Because the downloaded pictures do not show the floor the drone flies over. A sports hall floor is grey, shiny, painted with coloured lines and lit from above. An office carpet is none of those things, and a black background is not a floor at all.

So we built a pad that matches the downloaded one, put it on the hall floor, and photographed it. Those 46 pictures are the only ones in the whole set that show the real working environment.

The place that matters is the smallest part of the collection

The hall is where the drone flies. It is 37 % of the pictures. The rest is a room we have never flown in, plus a background that does not exist anywhere.

This should be borne in mind wherever a later page reports that the model performs well.

Why our pad looks the way it does

We copied it. Building our pad to match the downloaded one meant we could use all 77 of those already-marked-up pictures instead of photographing and marking up everything ourselves.

For a semester project that was clearly the right trade: 46 photos of our own became a 123-photo collection, and it saved roughly two thirds of the marking-up work.

It has two consequences, recorded here rather than left implicit:

1. A third of the pictures show something the drone will never see. A pad floating on a black background is not a floor.

2. We cannot say whether the model would recognise a different landing pad. Every picture we have: the ones we train on and the ones we test with — shows this one pad, because we deliberately built ours to match. There is no picture of any other pad to test against.

This follows from the composition of the collection rather than from an omission in testing, and no amount of testing with these pictures can resolve it. For our project it barely matters: the drone lands on this pad. It would start to matter if the pad were ever rebuilt differently.

Attribution and licence

The black-background pictures come from cgomolak/landing-pad-zvclx, licensed CC BY 4.0. Our merged version is amir-ebrahimi/landing-pad-zvclx-gs3dc. Everything was marked up again as outlines rather than plain rectangles, and exported in the format the training tool expects.

The sorting problem

Before training, a picture collection is split into three piles:

• one to learn from,
• one to check progress on while learning,
• one to grade the finished model with.

The grading pile has to contain pictures the model has genuinely never seen. Otherwise the result does not measure whether the model learned anything, only whether it can reproduce what it has already seen.

Our piles were mixed up, for two reasons at once.

Reason one: hidden copies. The export contains 295 images, but they come from only 123 photos. The tool automatically made three altered versions of every photo — mirrored, slightly brighter or darker, slightly blurred. Sorted at random, version 1 ends up in the learning pile and version 2 in the grading pile. Same photo, barely changed.

Reason two: burst photos. Our own hall pictures were taken as rapid sequences, a few centimetres apart. Photo 12 and photo 13 are nearly identical. Randomly sorted, one lands in each pile.

This is why the first score of 0.94 meant nothing

The model was being graded on pictures it had effectively already studied. The score measured its memory, not its ability.

The fix. build_dataset.py sorts by blocks rather than at random: a whole stretch of a sequence goes to one pile, and the few photos on either side of the cut are thrown away entirely, so nothing near-identical straddles the boundary.

python3 build_dataset.py      # 175 to learn from / 25 to check / 16 to grade

Why we did not simply re-grade the old models

The old models score well on the new piles too, but only because they were originally trained on those exact pictures. There is no untouched picture left to grade them with. So Training starts the old settings again from scratch, which is the only way to get comparable numbers.

What the collection is biased towards

Property	Value	What it causes
Typical pad size in the picture	78 % of the image width (measured across the 172 training pads)	the model has almost never seen a pad far away, though at the 2 m search height it appears at about 38 %, which is still a size it handles perfectly (why)
Camera position (all photos)	handheld, at an angle	never seen from straight above, which is exactly how the drone's camera is mounted
Pictures with no pad	0 of 175	"there is nothing here" was never a possible answer
Pictures on a black background	31 %	a view the drone will never have

Row one causes the problem described in Evaluation. Row three causes the one in Training.

The pictures with nothing in them

Row three above is the important one, so we fixed it: we added 76 pictures containing no pad.

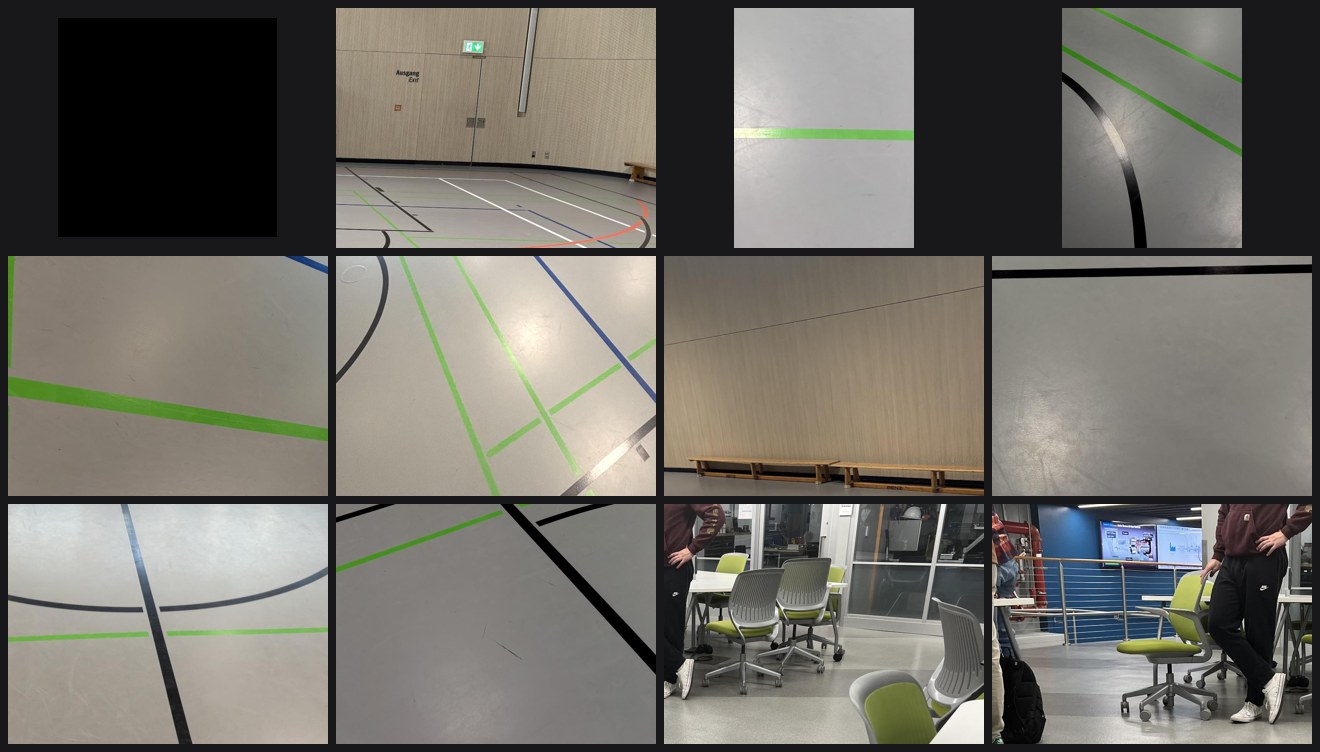

Twelve of the 76, taken evenly across the whole set: hall floor, painted lines, a wall, an office, and one plain black background, cut from the downloaded photos. No pad anywhere.

These are not new photographs. They are cut-outs of pictures we already had — ours and the downloaded ones — taken from parts of the frame where there is no pad: floor, painted lines, shadows, skirting boards. Each one is given to the model with an empty answer sheet: this picture contains nothing.

Three of the 76 are not like this, and that is the mistake described below.

python3 negatives.py          # 76 cut-outs -> 30 % of the pictures are now empty

That brings the collection to 251 pictures, of which 30 % contain no pad. It turned out to be the single most valuable change in the project: the reason why is on the Training page.

A mistake we found

Checking the collection, three empty answer sheets turned out not to be empty pictures.

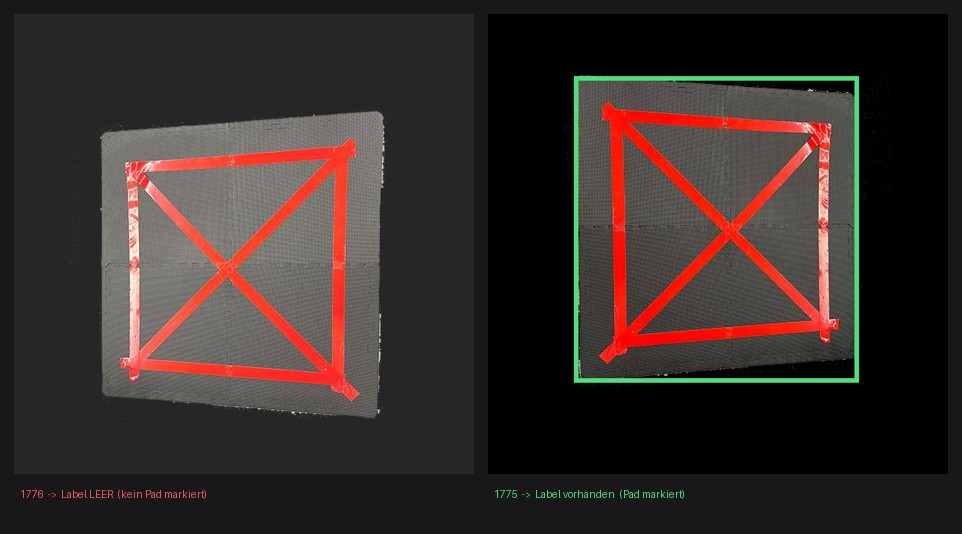

Left: photo 1776, answer sheet empty. Right: its neighbour 1775, correctly marked in green.

Photo 1776 shows the pad filling most of the frame, and nobody ever marked it up. It is the only such mistake in all 295 images; every neighbouring photo is marked correctly. The automatic copying then turned that one oversight into three pictures.

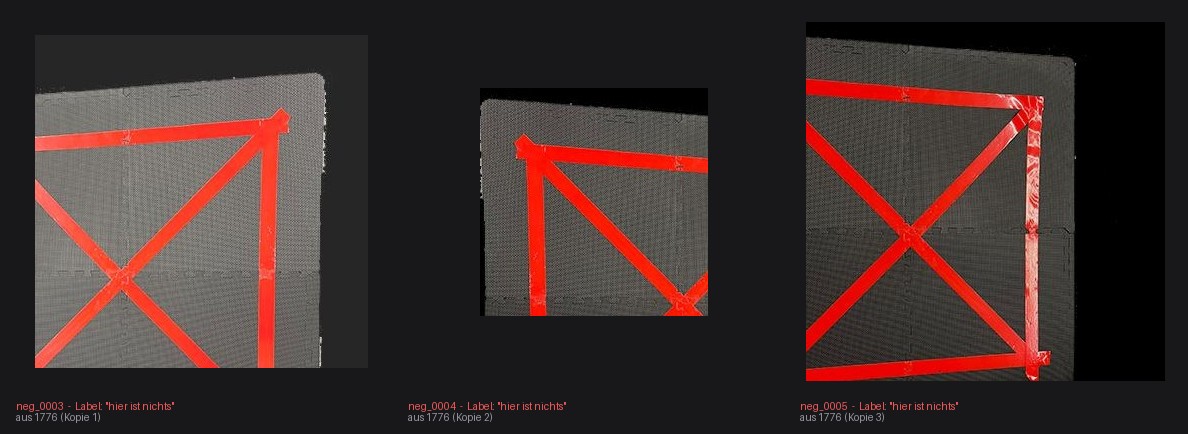

And it spread further. The tool that cuts out the empty pictures avoids any area where a pad is marked. On 1776 nothing was marked, so nothing was avoided — and three cut-outs were taken straight out of the pad and filed as "nothing here":

These three were traced back to photo 1776 by matching them pixel for pixel.

These are worse than the original mistake. They are close-ups of exactly what the model is supposed to look for — red tape on a dark mat — labelled "nothing here".

Altogether: 6 of 251 pictures (2.4 %) teach the model that a clear pad is nothing. One missed marking, multiplied twice: first by the automatic copying, then by the cut-out tool.

Whether that measurably harmed the finished model, we do not know — finding out would mean training again without them and comparing.

How to fix it, in a few minutes

Mark up 1776 in Roboflow, export again, and re-run negatives.py. The cut-out tool will then avoid the pad by itself. Worth doing before the next training run.

The separate set of 91 pictures used to measure false alarms is not affected — it is built from the other two piles, and 1776 is in the learning pile. The measured figure of 0.02 false alarms per picture still stands.

We checked every single picture

After finding that one, we checked all of them mechanically: is there an answer sheet, is it readable, are the coordinates sensible, is the box a plausible shape, are there duplicate pictures across the piles, and does the red tape actually fall inside the marked area. Everything the checks complained about was then looked at by eye.

Check	Result
Missing or wrongly empty answer sheet	1 photo — 1776, above
Unreadable, wrong category, impossible coordinates	none
The same picture in two different piles	none
More than one pad marked in one picture	1 photo — 1761, below
Very long, thin boxes	26 pictures — all correct, the pad seen almost edge-on really is that shape
Marked area contains hardly any red	1 picture — correct, the pad is far away and only a few pixels across
Lots of red outside the marked pad	65 pictures — all correct, those are the hall's painted floor lines

That last row is interesting on its own: in two thirds of our hall photos, most of the red in the picture is not the pad. It is the floor. The presence of red in a frame is therefore not an indicator of the pad's location.

The double marking (1761)

One picture has the same pad outlined twice — once loosely around the edge of the mat, once tighter along the red tape:

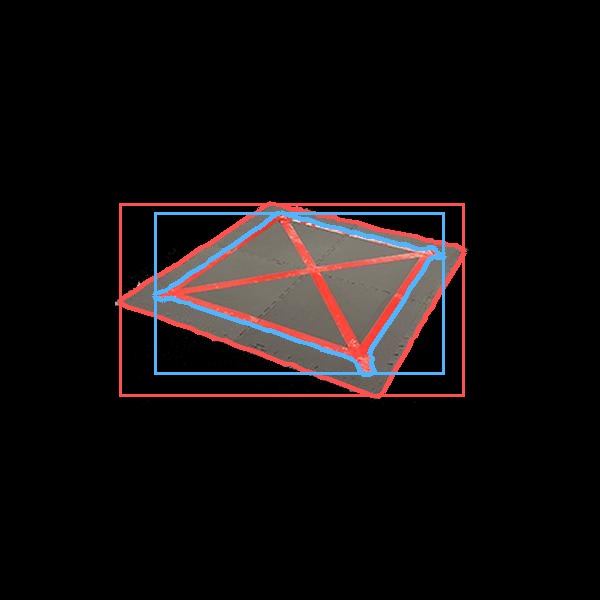

One pad, two outlines: red follows the mat's edge (71 points), blue follows the tape (68 points).

The answer sheet then expects two pads where there is one, so a model that correctly finds the single pad gets marked down for missing the other.

It changes nothing here. That picture sits in a pile our re-sorting threw away entirely — it appears in none of the training sets, so no training run ever saw it and no measurement includes it. It is recorded so that it does not quietly come back with the next export.

The check can be repeated after any new export:

python3 audit_dataset.py

What did not work: fake pictures

synth.py pastes small pads onto photos of real floors, to fake the distant views the collection is missing. It made 124 extra pictures. They improved how tightly the model draws its box, but made it worse at the hard cases they were meant to fix.

The fakes look convincing to a person. They are evidently no substitute for actually walking further away and taking a photo.

The scripts

File	What it does
build_dataset.py	re-sorts the piles so the model cannot cheat
negatives.py	cuts out the pictures with no pad in them
audit_dataset.py	checks every picture and answer sheet
synth.py	makes the fake distant pictures (the attempt that did not pay off)
build_2class.py	merges pad and person pictures (see Training)
